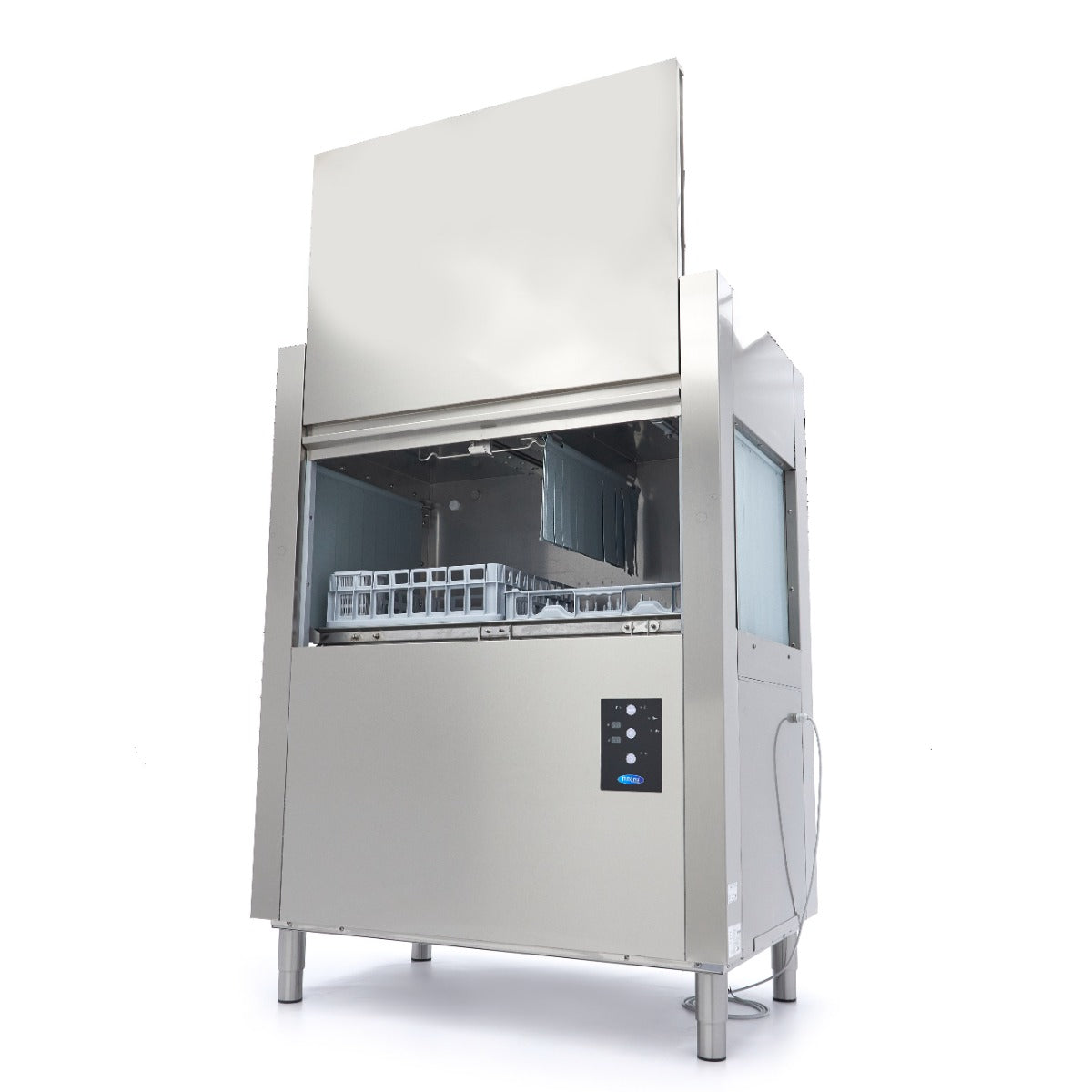

Dishwasher basket conveyor - straight exit

This conveyor dishwasher is ideal for cleaning large quantities of dishes, especially during peak hours. Racks containing dirty dishes slide quickly and easily into the rack conveyor for a thorough wash that leaves them clean and ready for reuse. This commercial dishwasher can clean between 60 and 120 racks per hour. It can be complemented by a stainless steel roller table located on the right side of the dishwasher.

Designed for commercial use

The wash temperature of this dishwasher is 60°C and the rinse cycle is 82°C, which allows for faster drying. It is also very quiet, as it operates at less than 65 dB. This dishwasher consumes 160 litres of water per hour. Its control panel is protected by the IPX4 standard, so water cannot seep behind the easy-to-use buttons. The conveyor dishwasher is delivered without a rinse and soap pump. The following accessories are included: a 50 x 50 cm glass rack, a 50 x 50 cm plate rack, and a supply and drain hose to connect the appliance to the water supply. No drain pump is included as the water drains naturally.

Easy to use

It is important to first rinse dirty dishes with a tap to remove food particles. Then, fill the rack with dishes and slide it through the protective curtains. Turn on the appliance and the machine will start to fill with water. During this phase, you can see the fill light flashing on the display. When the water has reached the correct level, the fill light turns off and the display shows the temperature of the boiler and wash tank. The machine starts to heat up and the lights illuminate when the programmed temperature is reached. You can then place the basket at the entrance of the machine. The basket will attach to the basket transport system and once it is inside the dishwasher, the wash program will begin.

Features

• Quiet machine (less than 65 dB)
• Rinse temperature of 82°C for fast drying
• Two complete wash programs of 60 and 230 seconds
• Water consumption per cycle: 2.66 and 1.33 L
• Excluding rinse aid and soap pumps

Product features

• Net weight: 175 kg
• Tank capacity: 70L
• Boiler capacity: 17L
• Closed dimensions: W116 x D78 x H158cm
• Door height: 45cm (max. glass/plate height: 44cm)
• Tank element: 10.5kW
• Boiler element: 9.5kW
• Wash pump: 0.60kW
• 400V / 50Hz / 3 Phase 22,000W

This product is supplied without cable or plug.

Included

• Supply hose
• Drain hose
• One plate rack (50 x 50cm)
• One glass rack (50 x 50 cm)
