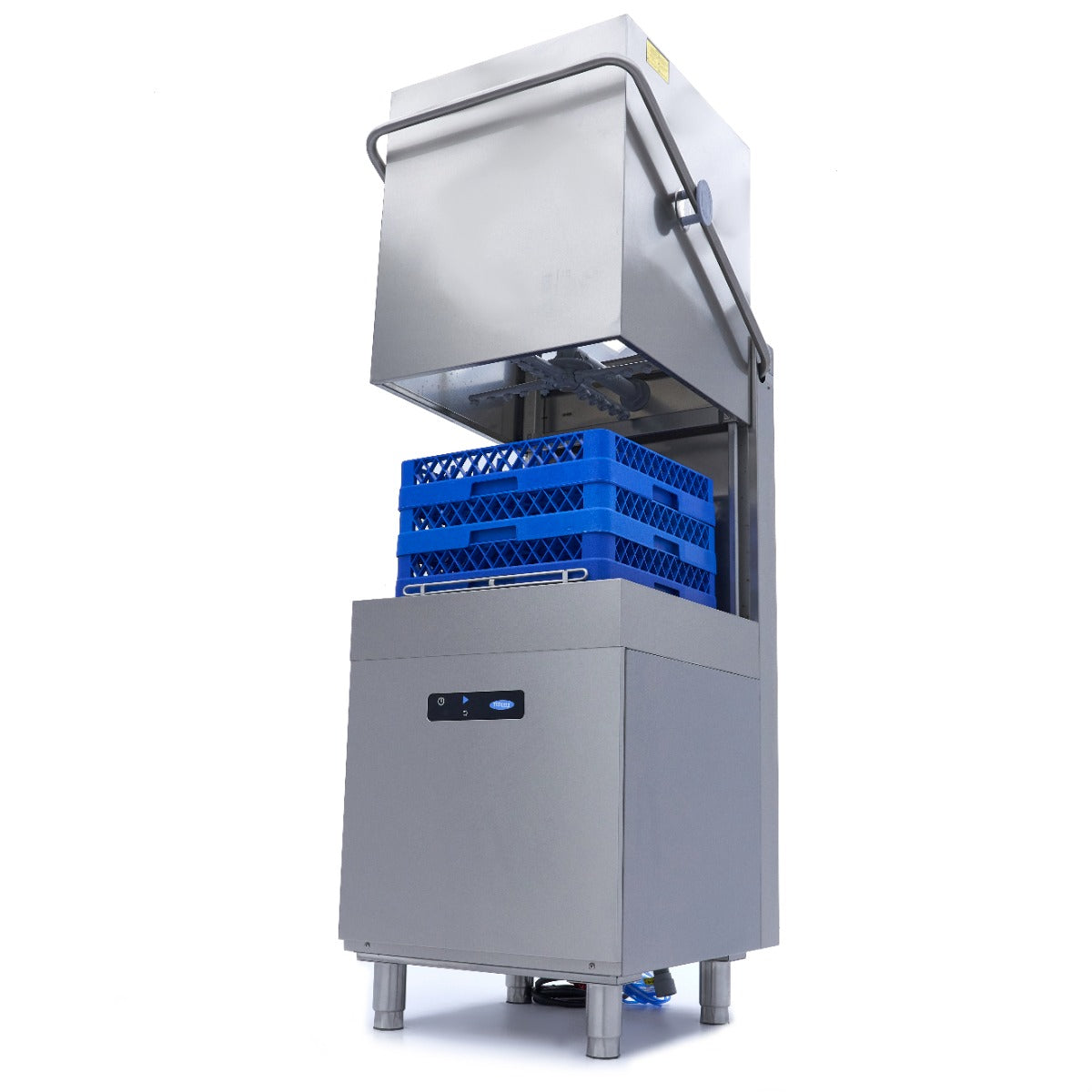

Hood-type dishwasher - 50 x 50 cm - with rinse and soap pumps - digital display - 400V

This pass-through dishwasher is indispensable for catering establishments that process large quantities of dirty dishes. It allows for quick basket passage, ensuring highly efficient dish handling. It is equipped with a digital control panel and three wash programs lasting 52, 102, and 192 seconds. The wash temperature is 55-60°C and the rinse cycle is 80-85°C, allowing for rapid drying of dishes. The appliance operates quietly, with a noise level below 75 dB. This dishwasher is very economical, as it consumes only 2.8 litres of water per cycle. It offers safety features such as thermal protection and IPX5 protection for the control panel. It is also easy to use with a single button for filling and heating water in the boiler tank. The digital pressure switch for the wash tank allows for easy adjustment of the water level, while the NTC sensor controls the thermostat. You can choose to preheat the water or start with a cold wash. Four indicator lights show the fill, heat, wash status, and program duration. This dishwasher emits a sound when the cycle is complete.

Ideal for dishwashing lines

This professional dishwasher offers several advantages, including the ability to connect it to a stainless steel pre-rinse table. This creates a continuous workflow, from pre-rinsing to drying. Both the appliance and our dishwasher tables are equipped with adjustable feet, allowing you to achieve the ideal working height. Thanks to this configuration, dirty dishes are cleaned quickly and easily. To start, simply place all dishes in the dishwasher basket and rinse them with a pre-rinse spray. Then push the basket into the dishwasher. Once the wash program is complete, slide the basket onto a draining table and allow the dishes to dry. This machine is also suitable for corner installations. We have included many accessories, such as a 50 x 50 cm glass basket, a 50 x 50 cm plate basket, a cutlery basket, and a supply and drain hose to connect the appliance to the water supply. The four adjustable feet also allow for customization of the appliance's height.

Easy-to-clean dishwasher

This pass-through dishwasher is entirely made of stainless steel, making it very easy and quick to clean. The smooth surfaces can be cleaned with a damp cloth. The wash arms inside are made of special ABS and can be cleaned with a cloth and water. The dishwasher is also equipped with a rinse aid dispenser and detergent pump.

Features

• Quiet machine at less than 75dB
• Rinse temperature of 85°C for quick drying
• Complete wash programs in 52, 102 and 192 seconds
• Water consumption per cycle of only 2.8L
• Includes rinse aid and soap pumps

Product specifications

• Net weight: 100 kg
• Tank capacity: 22L
• Boiler capacity: 7L
• Closed dimensions: W70 x D78.5 x H148cm
• Open dimensions: W70 x D78.5 x H196cm
• Door height: 44.5cm (max. glass/plate height 40cm)
• Maximum height of dishwasher tables: 83-86cm
• Tank element: 2.0kW
• Boiler element: 9.0kW
• Wash pump: 0.66kW
• 400V / 50Hz / 3 Phase 9660W

Included

• Supply hose
• Drain hose
• A cutlery basket
• A plate basket (50 x 50cm)
• A glass basket (50 x 50 cm)
