Blast chiller - fits 2 x 2/3 GN and 1 x 1/2 GN

This professional blast chiller is designed for the rapid chilling and freezing of food preparations in professional environments, such as hotels, restaurants, canteens, or cafés. Its compact size allows for installation in confined spaces.

The appliance is equipped with a cooling system using a water evaporator and CFC-free R290 refrigerant. The interior features rounded corners for easy cleaning. An integrated core probe allows for monitoring product temperature during chilling or freezing cycles.

Programs and temperature control

The chiller offers several programs for rapid chilling, rapid freezing, and deep freezing. Settings are adjusted via a digital controller, allowing for the desired duration and temperature to be set.

The stated performance allows product temperatures to be reduced from +65 °C to +10 °C in approximately 120 minutes, or from +65 °C to -18 °C in approximately 270 minutes, depending on the indicated loads.

The appliance is designed to operate in environments with ambient temperatures up to 32 °C.
An automatic defrost function is integrated.

Design and maintenance

The casing and interior are made of stainless steel (AISI 304).
Before cleaning, the appliance must be defrosted and brought to ambient temperature. Maintenance can be performed using a damp cloth, lukewarm water, and a mild detergent. It is recommended to limit water usage and thoroughly dry the appliance before putting it back into service.

Technical specifications

• Recessed handle

• Automatic defrost

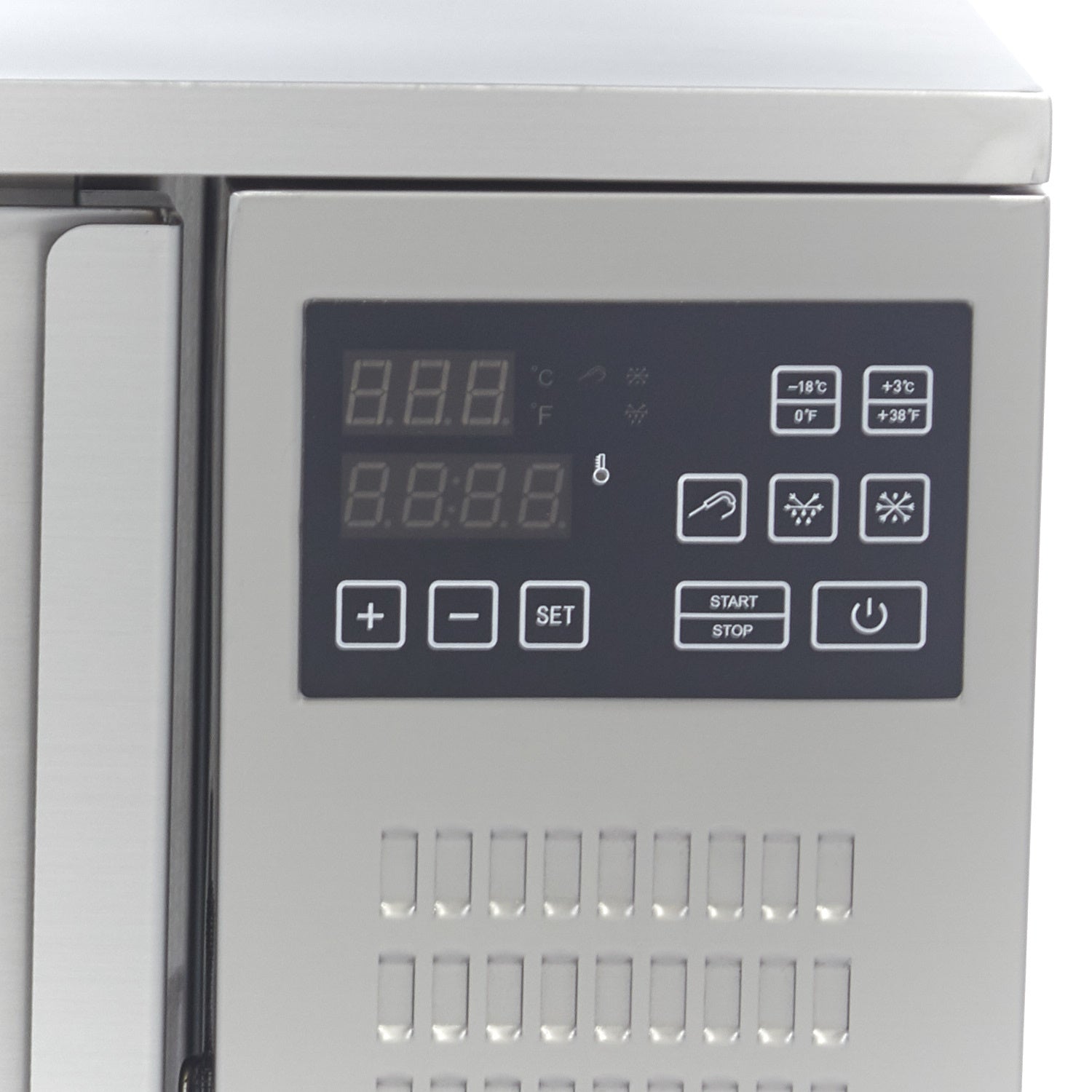

• Digital temperature control

• Cooling system with water evaporator

• Noise level: < 65 dB

• Casing and interior in stainless steel (AISI 304)

Product data

• Net weight: 40 kg

• Tray spacing: 7 cm

• Distance between top and bottom tray: 21 cm

• Internal dimensions: W 33 × D 26 / 35 × H 30 cm

• External dimensions: W 63 × D 61.5 × H 47.5 cm

• Rapid chilling capacity:

  • from +65 °C to +10 °C in approx. 120 min (load up to 5 kg)

• Rapid freezing capacity:

  • from +65 °C to -18 °C in approx. 270 min (load up to 2.5 kg)

• Power supply: 230 V / 50 Hz / 1 phase

• Power: 550 W
